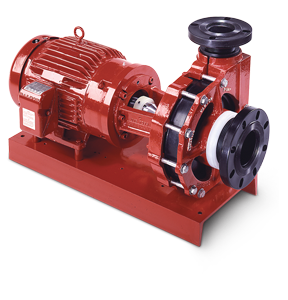

Features
- Pump casing and cover molded from virgin, homogeneous thermoplastic.
- Dynamically balanced, closed vane thermoplastic impellers with molded-in stainless steel inserts assure rigidity, and are key locked to the shaft.
- Stainless steel, large diameter shaft with wet end completely isolated from fluid contact by non-metallic sleeving.
|
|
- Pump accommodates standard single and double mechanical seals without modification. Seals are reverse mounted with non-metallic seal component inboard to avoid any metal-to-fluid contact, making it unnecessary to use costly high alloy or exotic metals.
- Metal armor totally encloses thermoplastic casing and flanges to provide nozzle loadings comparable to those of metal pumps.
|

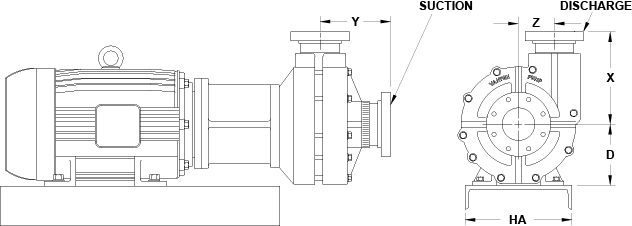

CHEM-GARD® CGC PUMP DIMENSIONS: INCHES (MM)
| PUMP SIZE |
SUCTION
SIZE |
DISCHARGE
SIZE |
DIMENSIONS IN INCHES (MM) |
| D |
X |
Y |
Z |
HA* |
| CG-200 |
1
(25.40) |
1
(25.40) |
5 1/4
(133.35) |
6 7/8
(174.24) |
3 1/2
(88.90) |
2 1/2
(63.50) |
12
(304.80) |
| CG-300 |
1 1/2
(38.10) |
1 1/2
(38.10) |
5 1/4
(133.35) |
8
(203.20) |
4 1/2
(114.30) |
3 9/32
(83.31) |
12
(304.80) |
| CG-500 |
2
(50.80) |
1 1/2
(38.10) |
5 1/4
(133.35) |
8
(203.20) |
5
(127.00) |
3 9/32
(83.31) |
12
(304.80) |
| CG-800 |
2
(50.80) |
1 1/2
(38.10) |
5 1/4
(133.35) |
7 15/16
(201.68) |
4 15/16
(125.48) |
3 9/32
(83.31) |
12
(304.80) |
| CG-1200 |
3
(76.20) |
2
(50.80) |
5 1/4
(133.35) |
10 3/4
(273.05) |
7
(177.80) |
4 3/16
(106.43) |
12
(304.80) |
| CG-1800 |
4
(101.60) |
3
(76.20) |
5 1/4
(133.35) |
10 3/4
(273.05) |
7
(177.80) |
4 3/16
(106.43) |
12
(304.80) |
| CG-2400 |
6
(152.40) |
4
(101.60) |
10 1/4
(260.35) |
16
(406.40) |
12
(304.80) |
Centerline
Discharge |
15
(381.00) |
Dimensions and specifications subject to change and may vary slightly with motor manufacturer selected.
60- and 50-Hertz performance curves and metric dimensions are available on request.
For higher horsepower and operating speeds consult factory.
Catalog sheets available on other Vanton centrifugal pump models including self-priming designs,
vortex heads, magnetic drive and foot-mounted pumps.
|
